마이크로 소용돌이 흐름 미터

LUDC 소형 와류 유량계는 작은 파이프 라인을위한 압전 센서와 스테인레스 스틸 바디를 채택합니다. 그것은 마이크로 액체 흐름 모니터링을 위해 고립 된 4-20mA 및 RS485 Modbus를 지원하는 ± 1.5% 정밀도로 가스 및 액체를 측정합니다.

Features of Micro Vortex Flow Meter

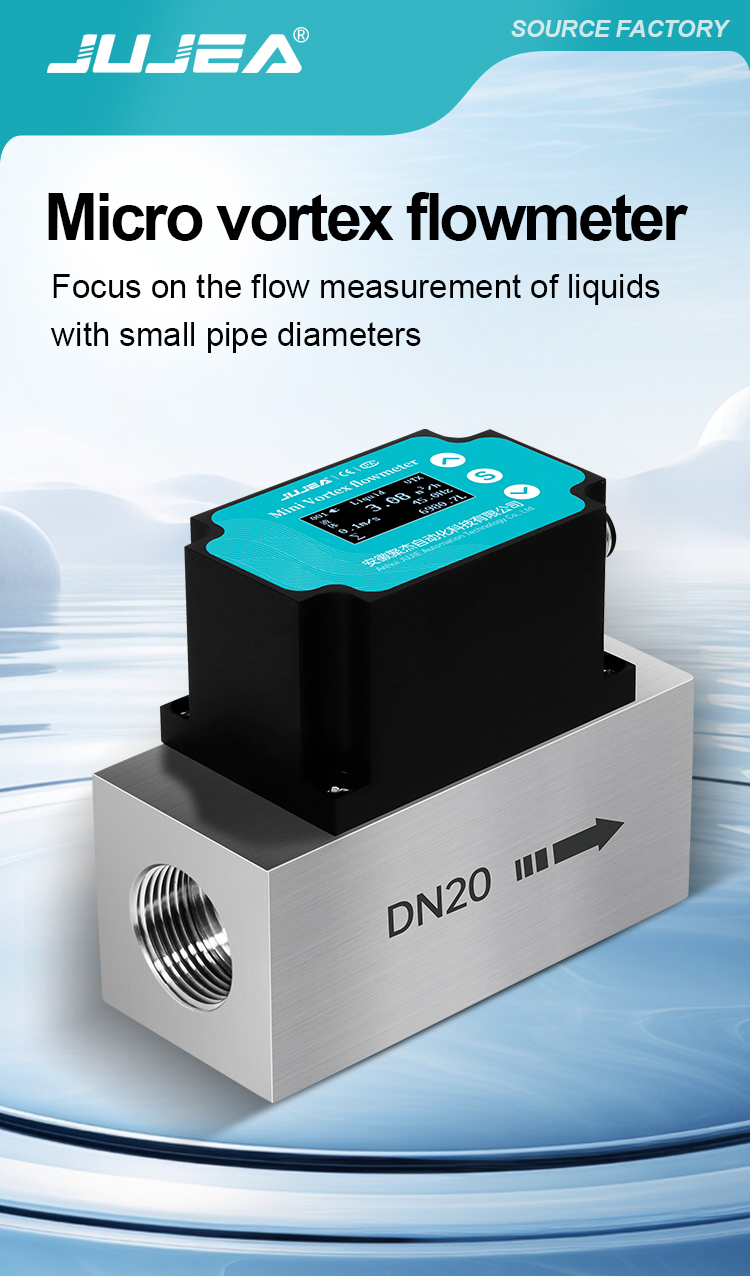

  • Mini DN8/12/15 small-caliber design, NPT male thread compact connection

  • Piezoelectric detection, no moving parts, low pressure loss, minimal maintenance

  • ±1.5 measurement accuracy, independent of medium density & viscosity

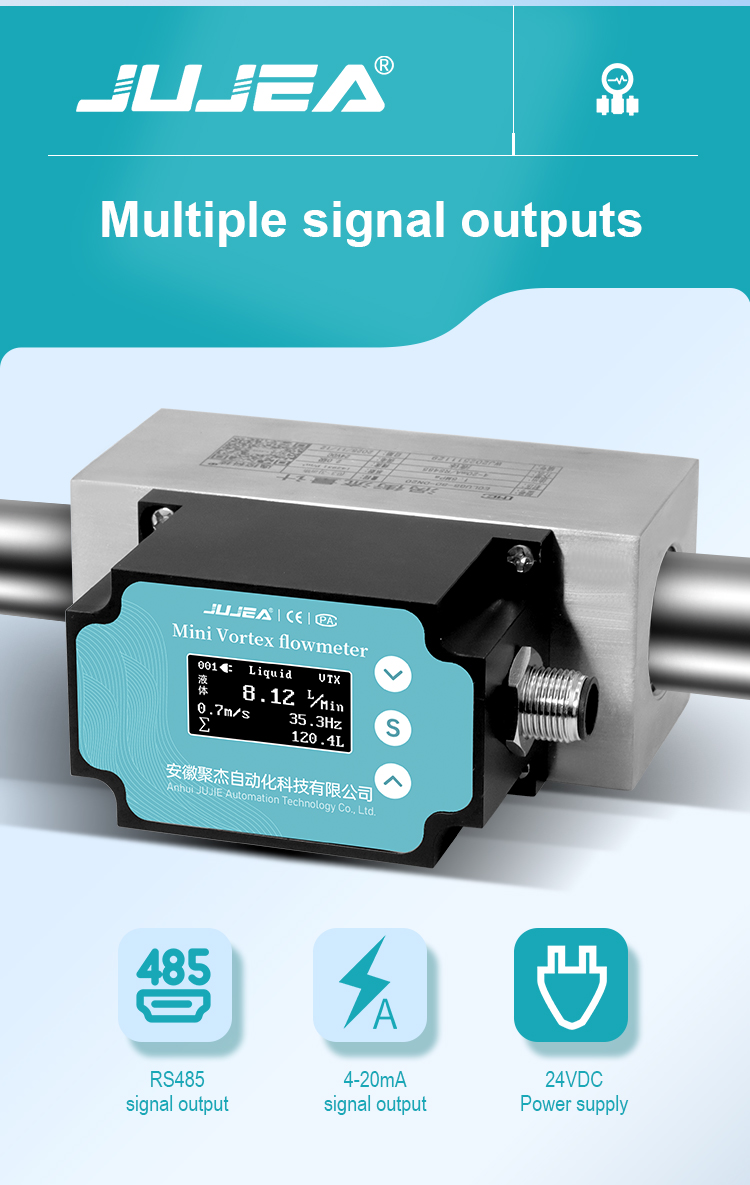

  • Dual isolated output: 4-20mA analog + RS485 Modbus RTU communication

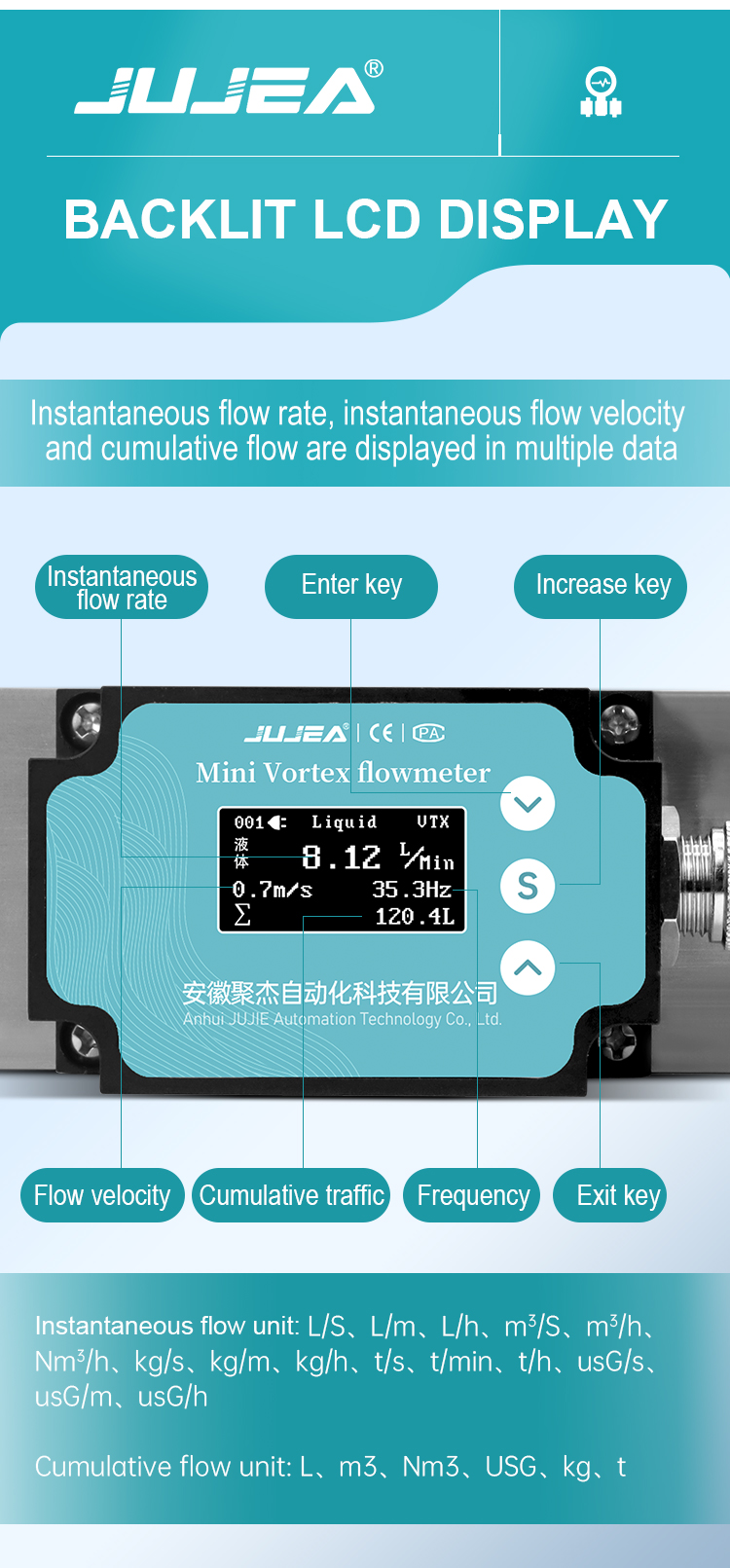

  • LCD bilingual display, shows instantaneous & cumulative flow values

  • Adjustable damping and small signal cut-off to eliminate zero drift

  • IP65 protection, DC24V power supply, integrated compact structure

  • Configurable flow unit, density & temperature-pressure compensation parameters

  • Password-locked menu to avoid unauthorized parameter modification


Specification of Micro Vortex Flow Meter

Nominal Diameter (mm)DN8DN10DN15DN20DN25
Flow Range (m³/h)//0.2~60.3~90.5~15
Critical Flow (m³/h)//0.350.60.8
Measuring Medium and TemperatureLiquid; ≤80℃
Pressure Rating1.6MPa

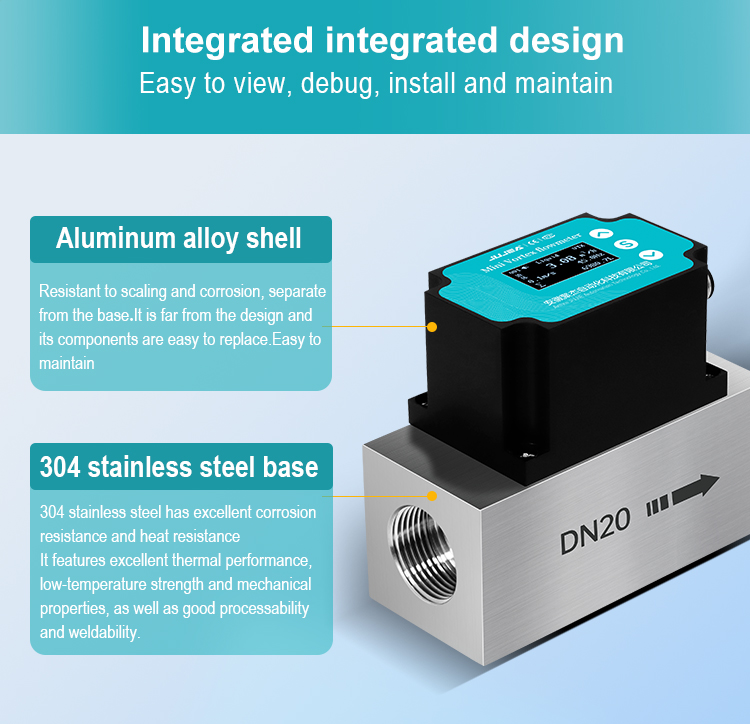

MaterialValve body: 304; Sensor: PPS; Display housing: Aluminum
Accuracy±1.5%±2.0%±3.0%
Turndown Ratio10:120:130:1
Power Supply12~24VDC
Output4-20mA & RS485
Protection ClassIP65
Environmental Conditions-20~55℃; Relative humidity: 5~95%; Atmospheric pressure: 86~106Kpa
DisplayLCD Display
Electrical Interface5-pin Aviation Plug
Connection MethodG1/4G3/8G1/2G3/4G1
Total Length/Total Height (mm)Total length: 100; Total height: 85/45

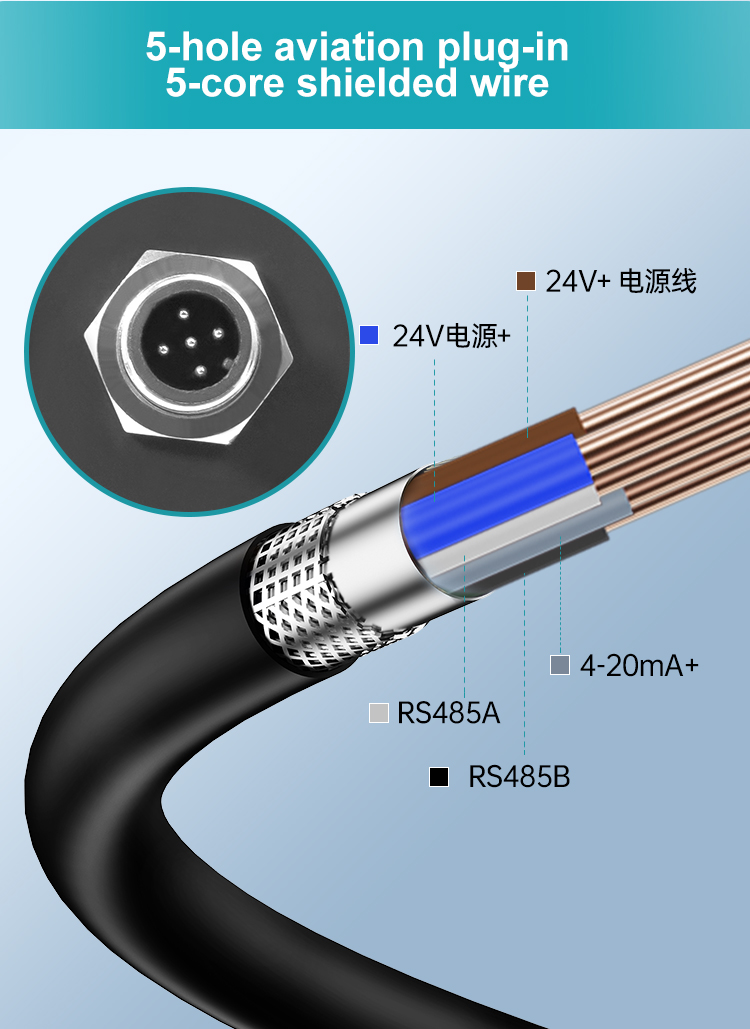

WiringBrown: 24V+, Blue: 24V-, Gray: 4~20mA+, White: A, Black: B


Diagram of Micro Vortex Flow Meter
