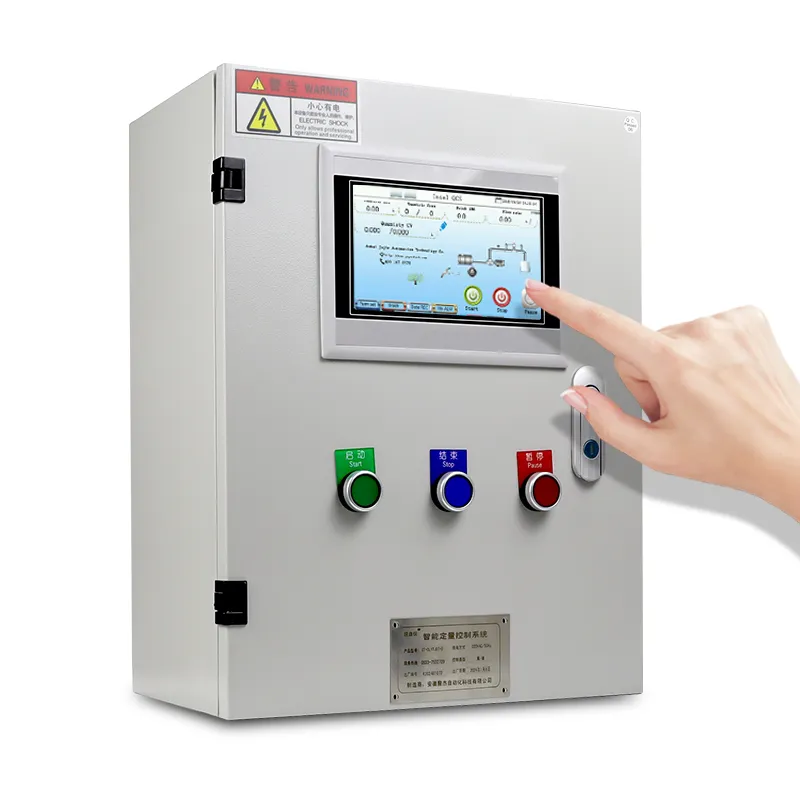

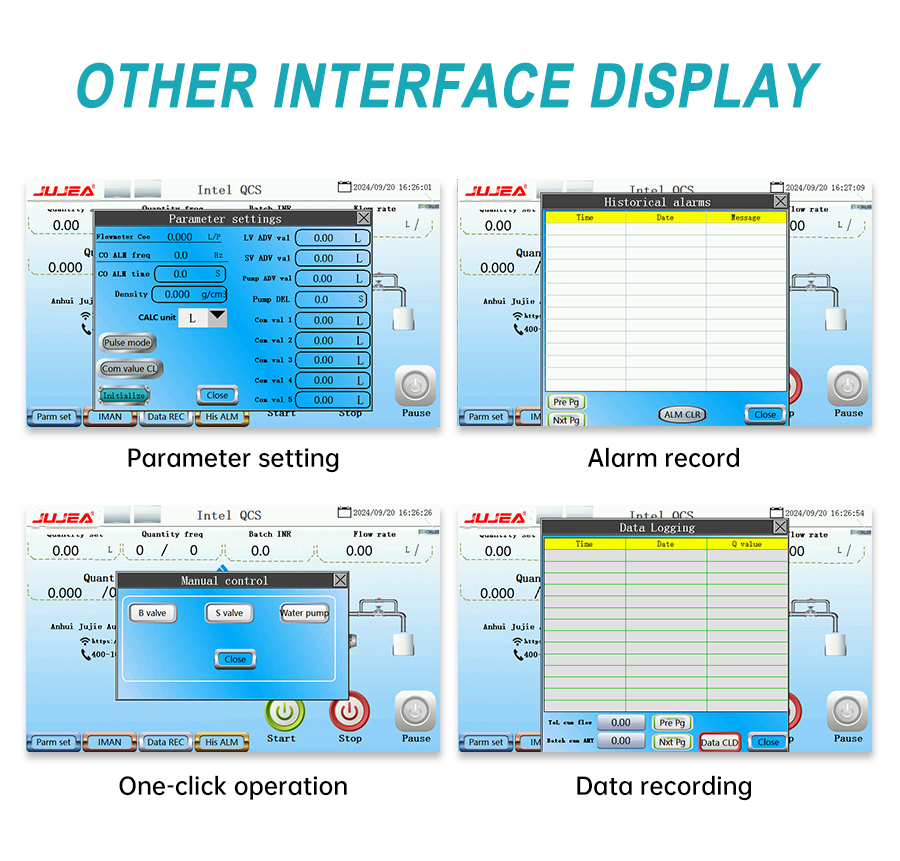

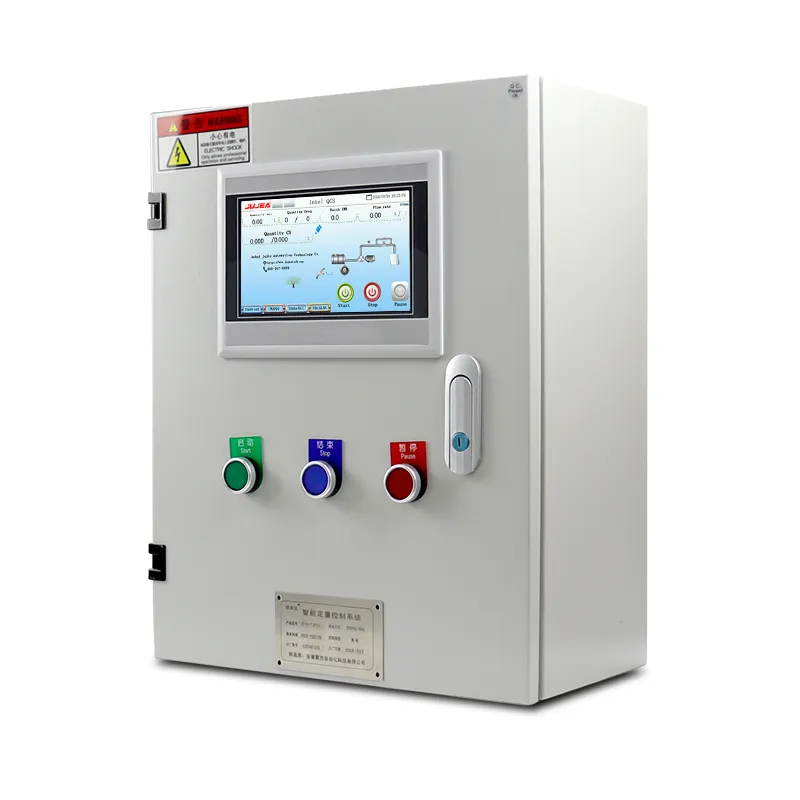

HMI touchscreen operation, intuitive visual flow pipeline display

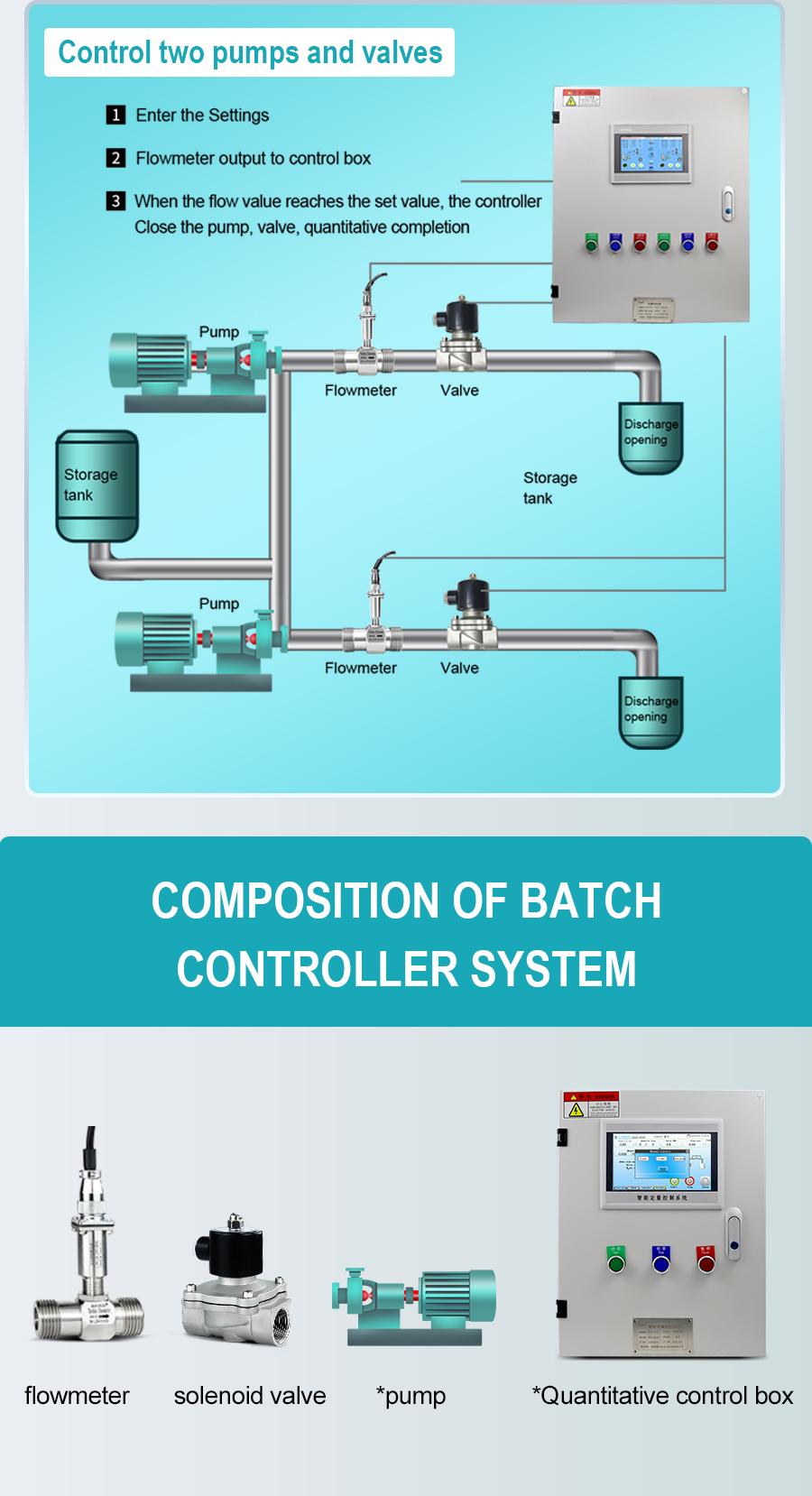

Dual large/small valve control to eliminate filling overshoot error
Supports L/Kg/m³/t multi-unit conversion, mass/volume metering
Permanent batch data & fault alarm storage after power off
Built-in Modbus RTU for remote data upload and linkage

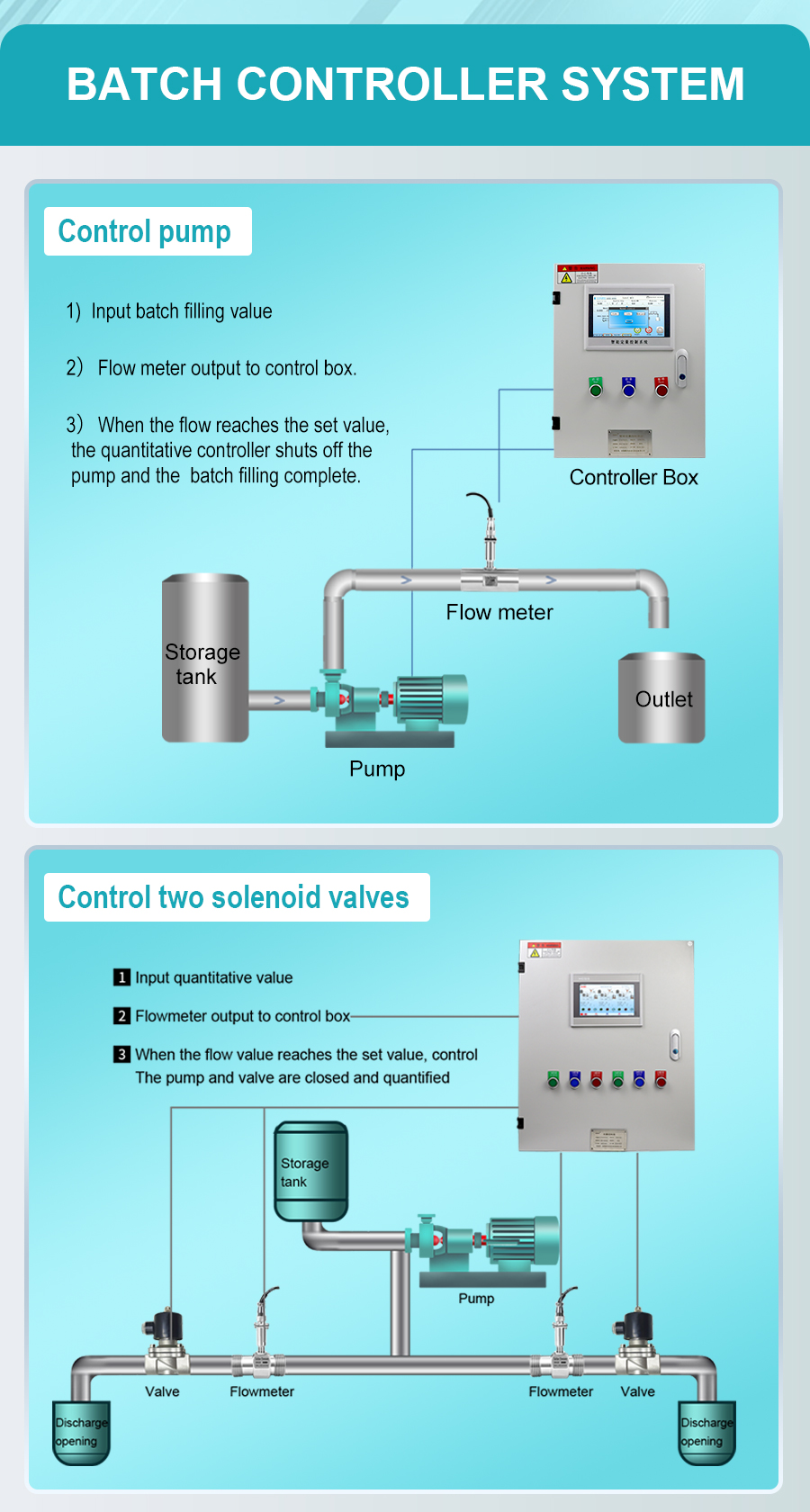

Flow interruption, pump overload automatic alarm protection
Manual valve/pump test mode for convenient on-site debugging

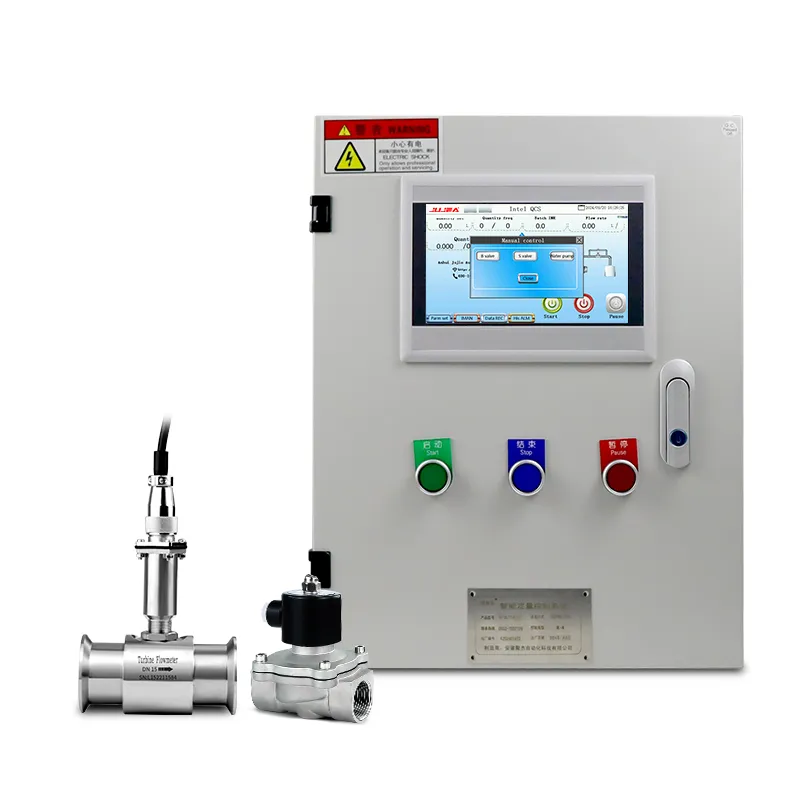

Compatible with pulse and current-type flow meters widely

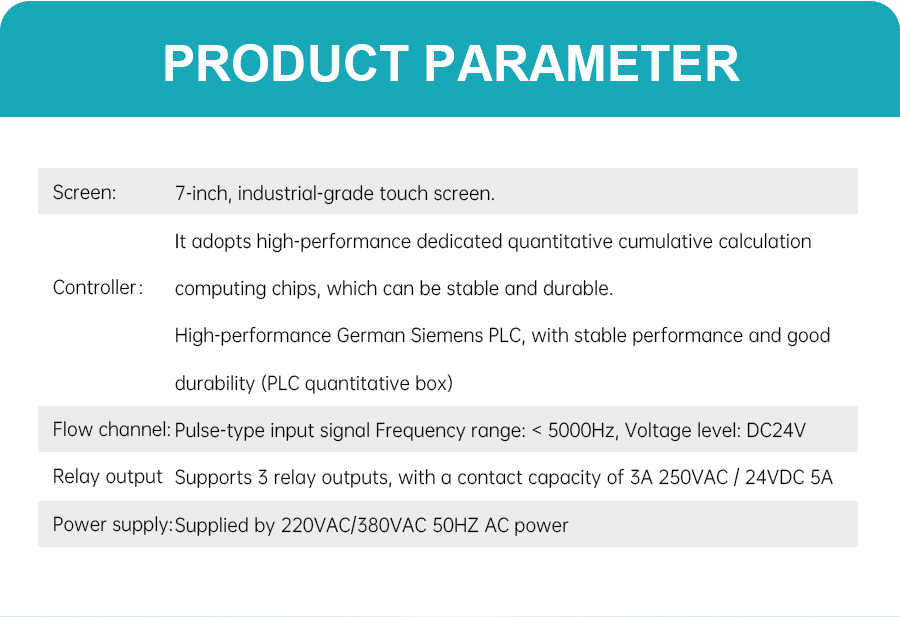

| Screen | 7/10/15-inch industrial-grade touchscreens |
| Controller | High-performance dedicated quantitative accumulation calculation chip |
| Flow Channel Input | Pulse-type input signal; frequency range:<5000Hz; voltage rating: DC24V |
| Relay Output | Supports 3-channel relay output, contact capacity 3A 250VAC/5A 24VDC |
| Power Supply | 220VAC/380VAC 50HZ AC power supply |
| Communication Interface | Provides an RS485 communication interface; supports Modbus RTU protocol (for connection to a host computer or other data reading devices). |
| Product Dimensions | 350*450*200mm |
