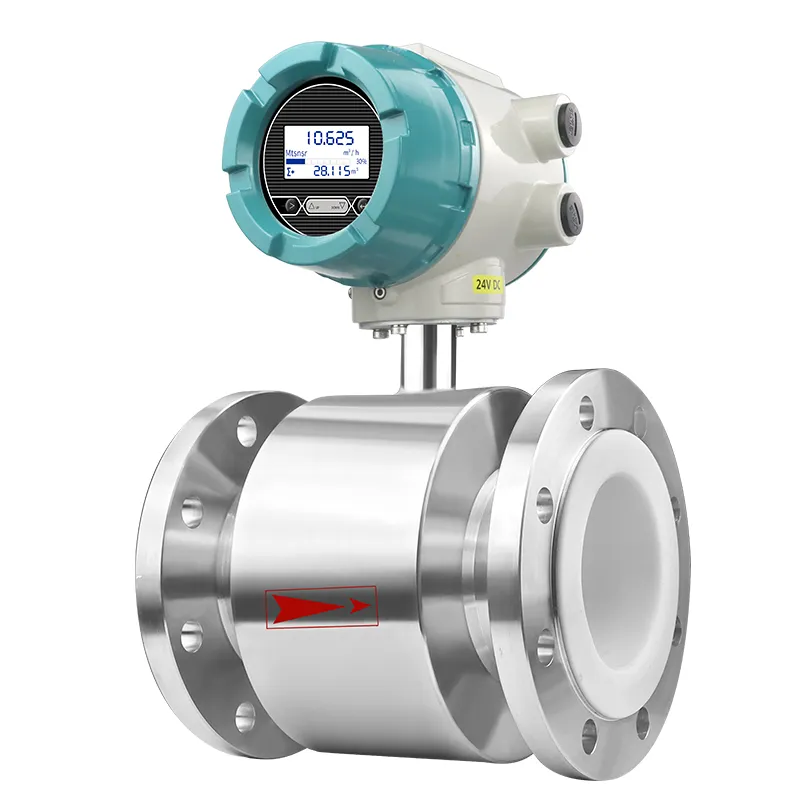

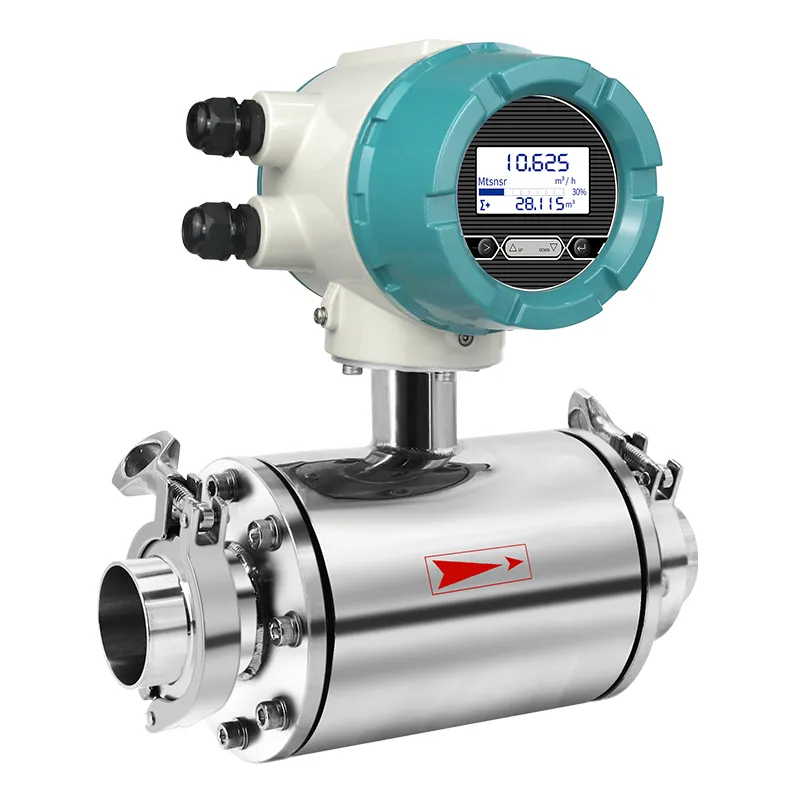

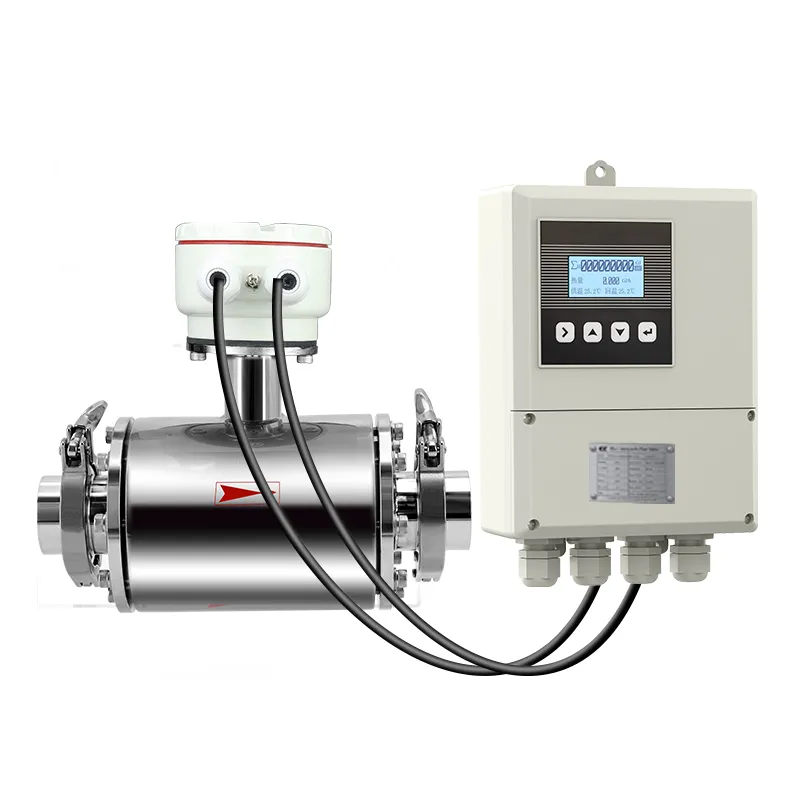

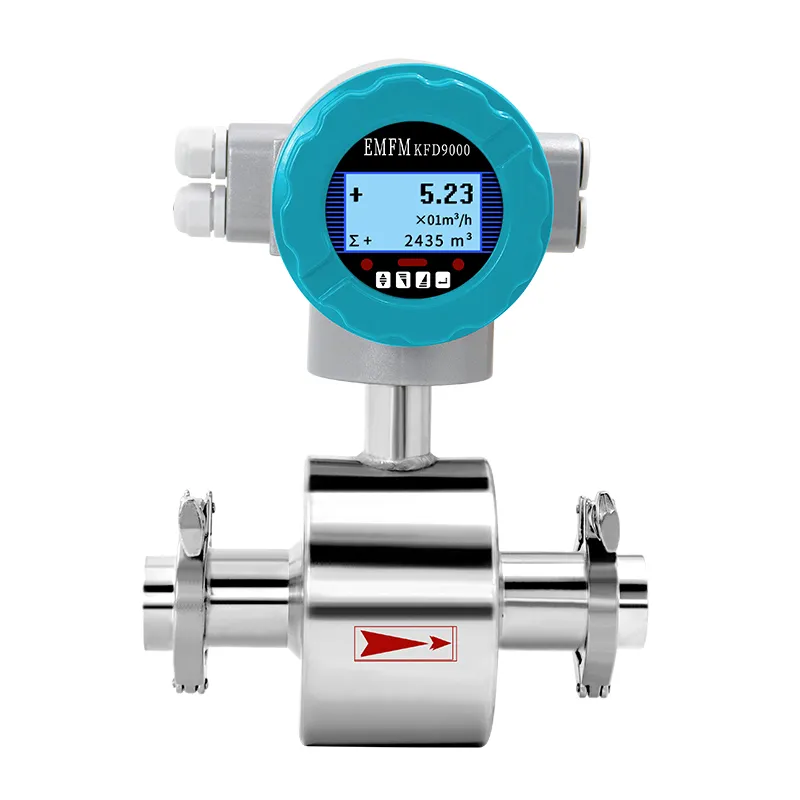

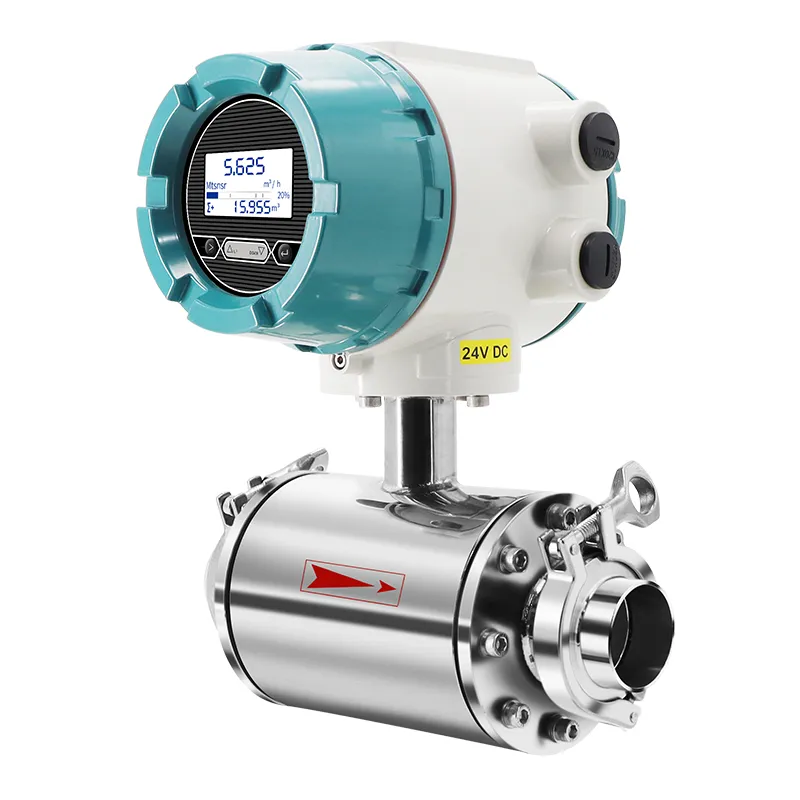

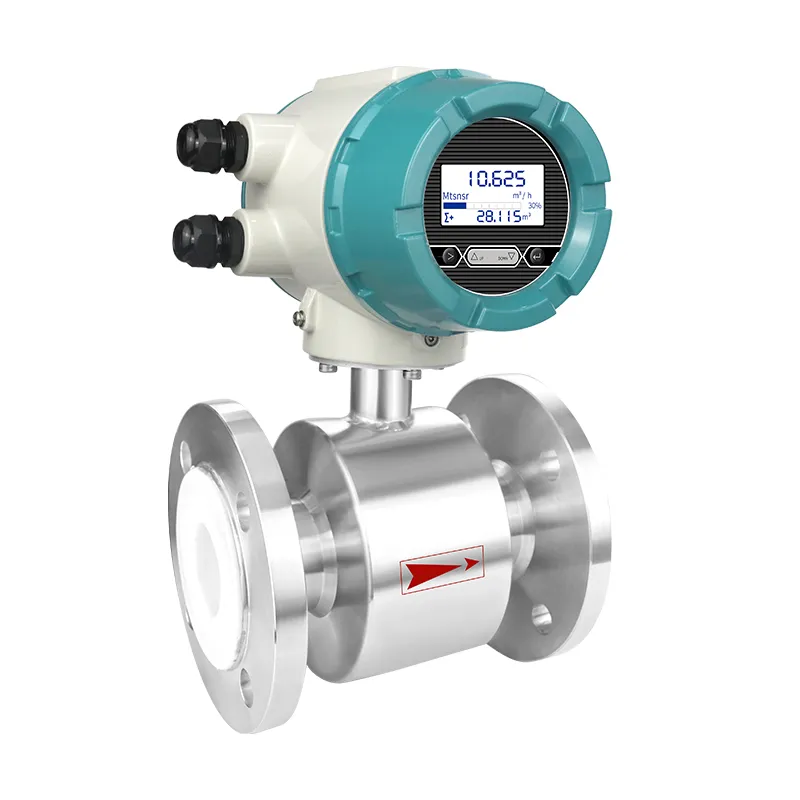

슬러리 흐름 미터

위생 및 산업용 전자기 슬러리 유량계는 펄프, 슬러지 및 채광 슬러리를 위해 설계된 내마모성 라이닝 및 마모 방지 전극을 채택합니다. 내부 차단, 양방향 측정, 빈 파이프 경보 및 다중 신호 출력 장착

슬러리 흐름 측정기의 특징

  • 움직이는 내부 부품 없음, 고체-액체 혼합 슬러리

  • 내마모성 PTFE/F46/PUR 라이닝에 대한 막힘 위험 제로, 반대로 연마 Hastelloy/Tantalum 전극 옵션

  • 넓은 구경 DN15 ~ DN1200, 고농도 슬러지, 광석 펄프, 발효 매시

  • 내장 빈 파이프 감지 및 고/저 흐름 경보 기능

  • 양방향 흐름 측정, 전진/역전 총 흐름 분리 누적

  • 다중 출력: 4-20mA, 펄스, RS485 Modbus, 옵션 HART & 블루투스

  • 넓은 중간 온도-20 ~ 180 ℃, 가혹한 슬러리 사이트에 대한 강한 간섭 방지



슬러리 흐름 측정기의 사양

공칭 직경 (mm) PTFE 라이닝이있는 파이프 유형: DN10 ~ DN500; 고무 라이닝이있는 파이프 유형: DN65 ~ DN1200
정확도 클래스 클래스 0.5; 클래스 1.0
중간 온도 일반 고무 라이닝: -20 ~ + 70 ℃; PTFE 라이닝: -20 ~ + 120 ℃
압력 등급 0.6MPa, 1.6MPa, 4.0MPa (더 높은 압력은 맞춤형으로 제작 가능)
유량 측정 범위유량 측정 범위는 유속 0.5~5m/s에 해당합니다
전도도 범위유체의 전도도 ≥50μS/cm이며, 물의 전도도는 200~800μS/cm 범위입니다
신호 출력펄스, 4~20mA, RS485
디지털 주파수 출력주파수는 1~5000Hz 범위에서 설정할 수 있습니다, 외부 전원 공급이 ≤35V일 때 최대 컬렉터 전류는 250mA입니다
전원 공급220V, DC24V; 배터리 전원 공급
접속 방식플랜지, 나사, 클램프
방폭 표시Ex db mb IIC T6 Gb
주변 온도 및 습도-25℃ ~ +60℃; 5%RH~95%RH
총 소비전력<20W 미만


<90
