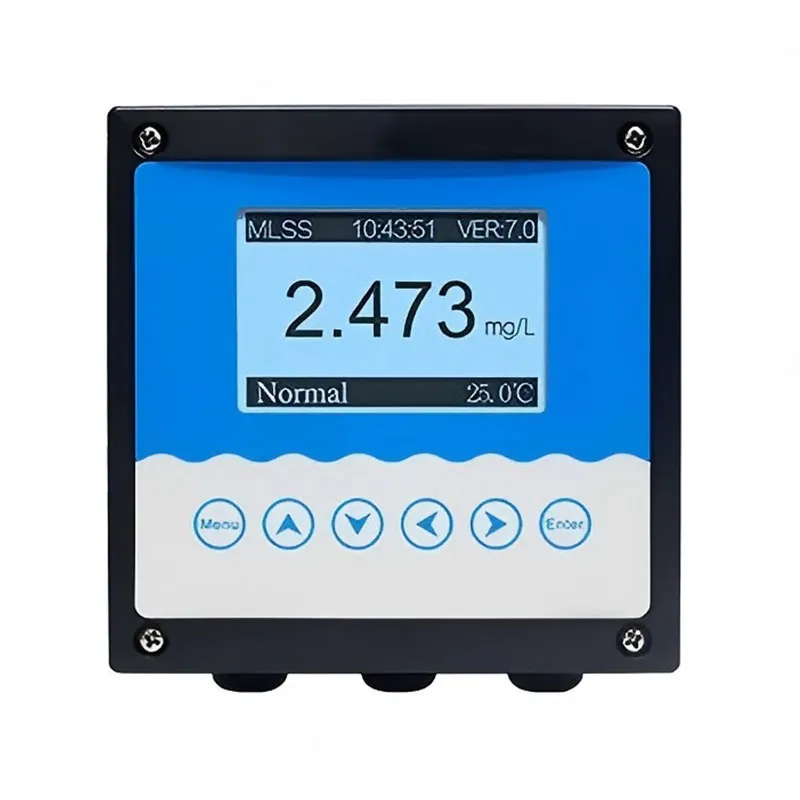

TSS/SS 송신기

TSS 송신기는 온라인 일시 중단 된 고체 모니터링을 위해 CS 시리즈 슬러지 센서와 일치합니다. 도시 하수 및 폐수 처리장을 위해 설계된 다중 보정 모드, 듀얼 4-20mA 출력, 3 개의 릴레이 경보 및 RS485 Modbus가 특징입니다.

Features of TSS/SS Transmitters

Intelligent single-chip control, built-in temperature compensation for stable readings
Two calibration options: 10-point multi-calibration & on-site water sample calibration
Dual isolated 4~20mA analog outputs, freely assign to TSS or temperature
Three groups of relay switches with adjustable alarm hysteresis to avoid frequent triggering
RS485 Modbus RTU communication, supports multi-device networking (node 1~247)
Multi-parameter LCD display: TSS value, temperature, time and equipment status
Custom password lock to prevent unauthorized parameter modification
Historical data storage, adjustable recording interval for data traceability
Supports automatic sensor cleaning timing control function

Concentration range：	0 to 200,000 mg/L (depending on the sensors measurement range);
Measurement unit：	mg/L; g/L;
Resolution ratio：	0.001/0.01/0.1/1 (depending on the sensors range);
Temperature：	-10~150.0 (based on the sensor range);
Resolution ratio：	0.1°C;
Intrinsic error：	±0.3°C;
Current output：	0/4 to 20mA, 20 to 4mA (2 channels, load resistance<750Ω);
Communication output：	RS485 Modbus RTU;
Control contact：	Three groups: 5A 250VAC, 5A 30VDC;
Power Supply Voltage：	85-265VAC, 9-36VDC (optional, choose one), power:<3W
Work Environment：	There is no strong magnetic field interference around the earth magnetic field.
Ambient Temperature：	-10~60°C;
Relative Humidity：	not more than 90%;
levels of protection：	IP65;
Instruments weight：	0.8kg;
External dimensions：	144x144x118mm;
Opening size：	137x137mm;
Way to install：	Panel-mounted (panel-style/embedded), wall-mounted, and pipe-mounted.
